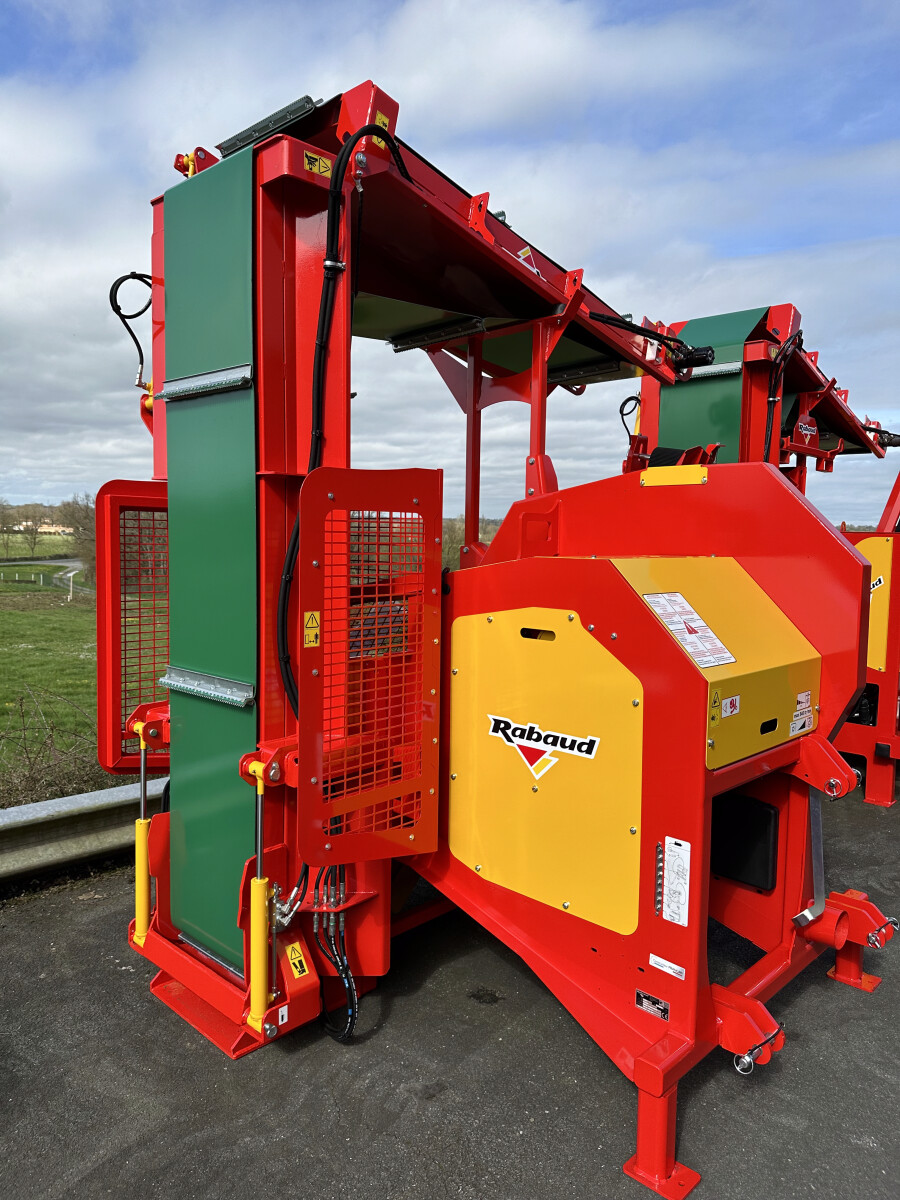

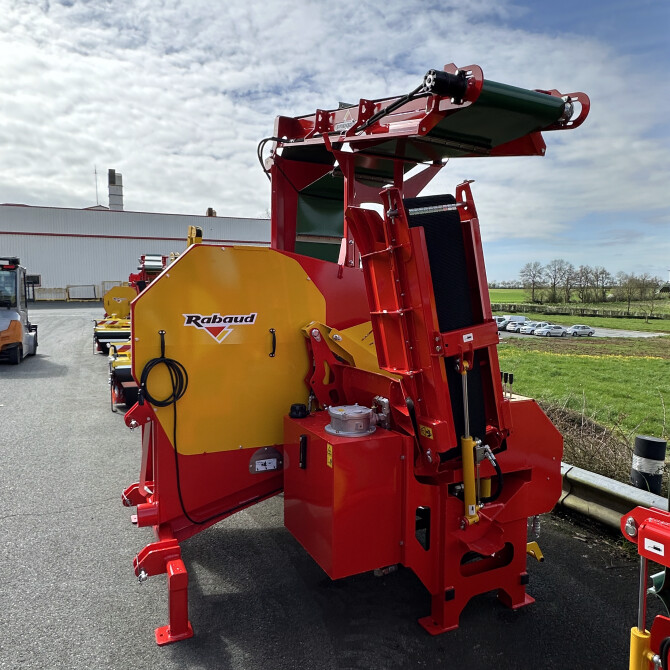

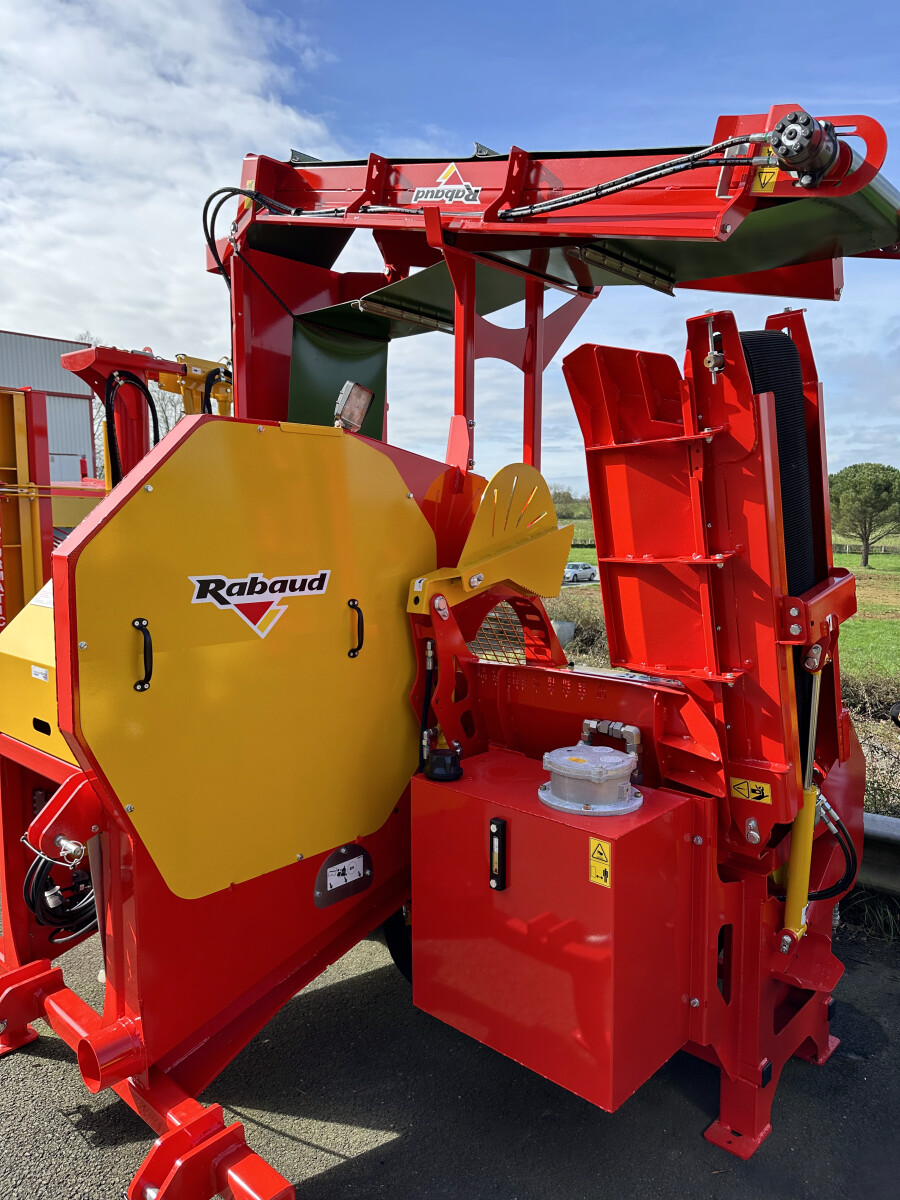

Rabaud Xylog 410

579 000

Splitting pressure
16 t: Max. diameter
41 cm

Kontaktujte nás

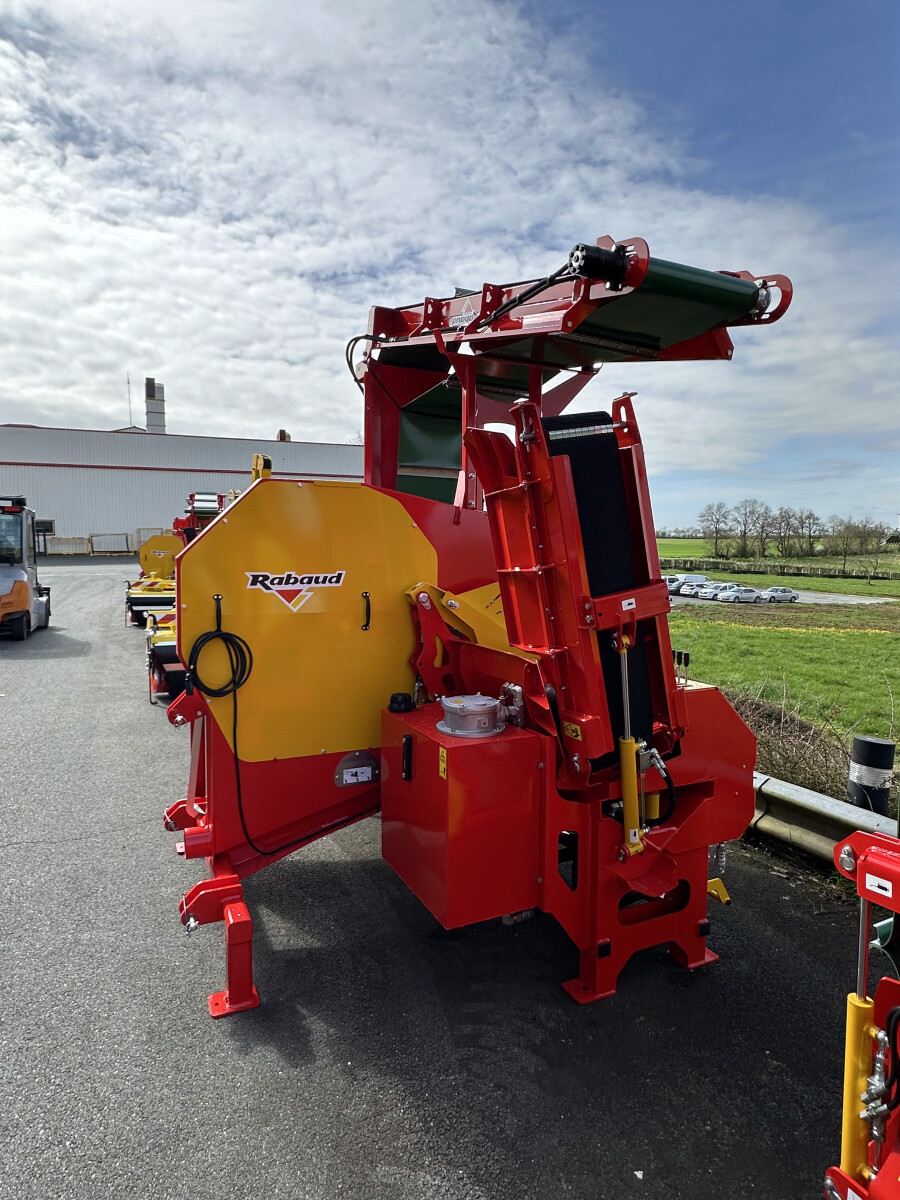

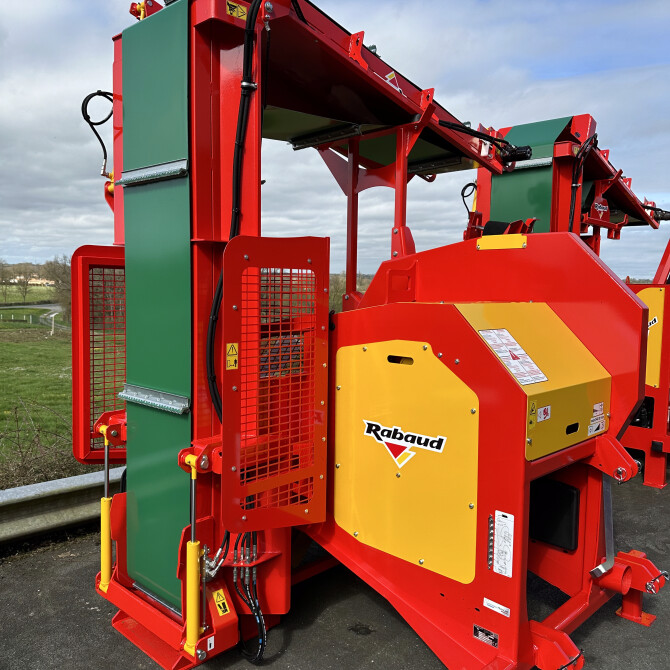

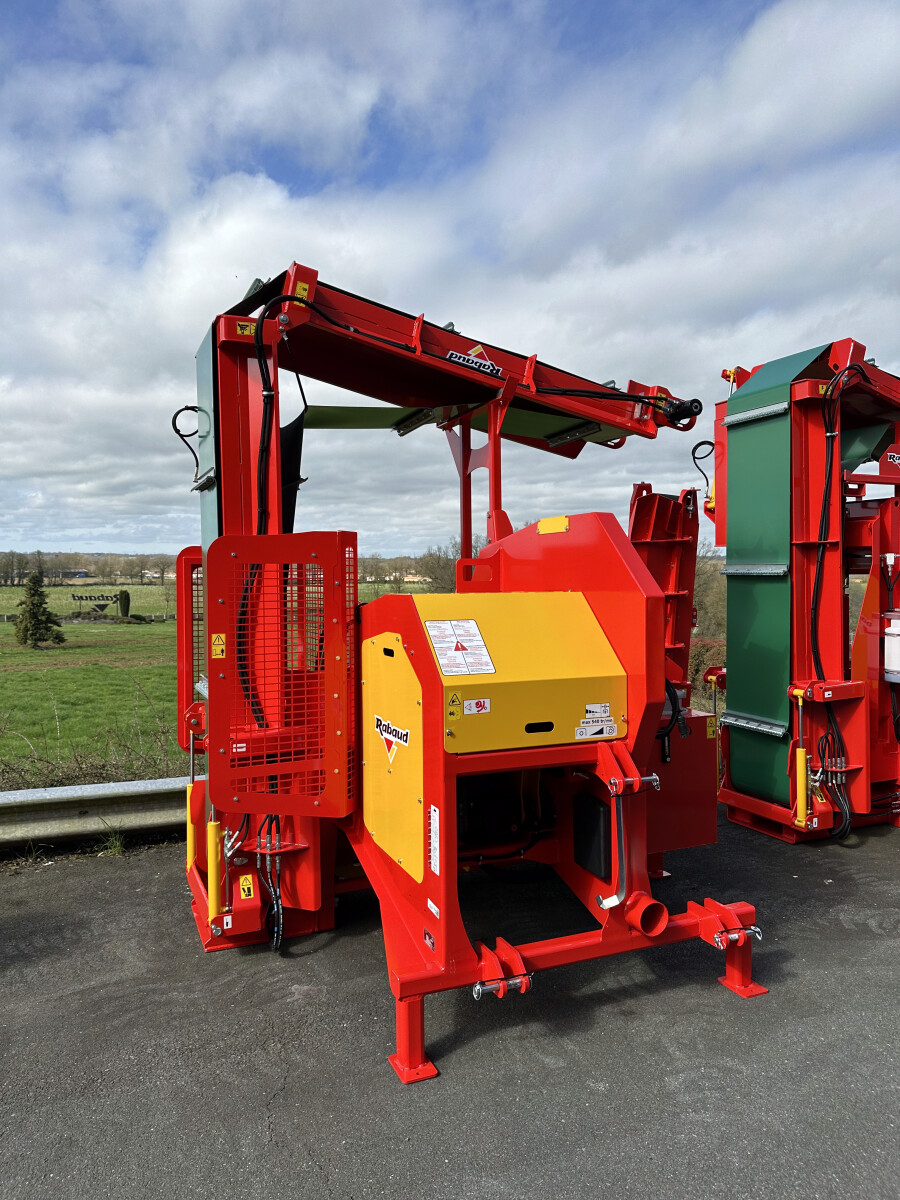

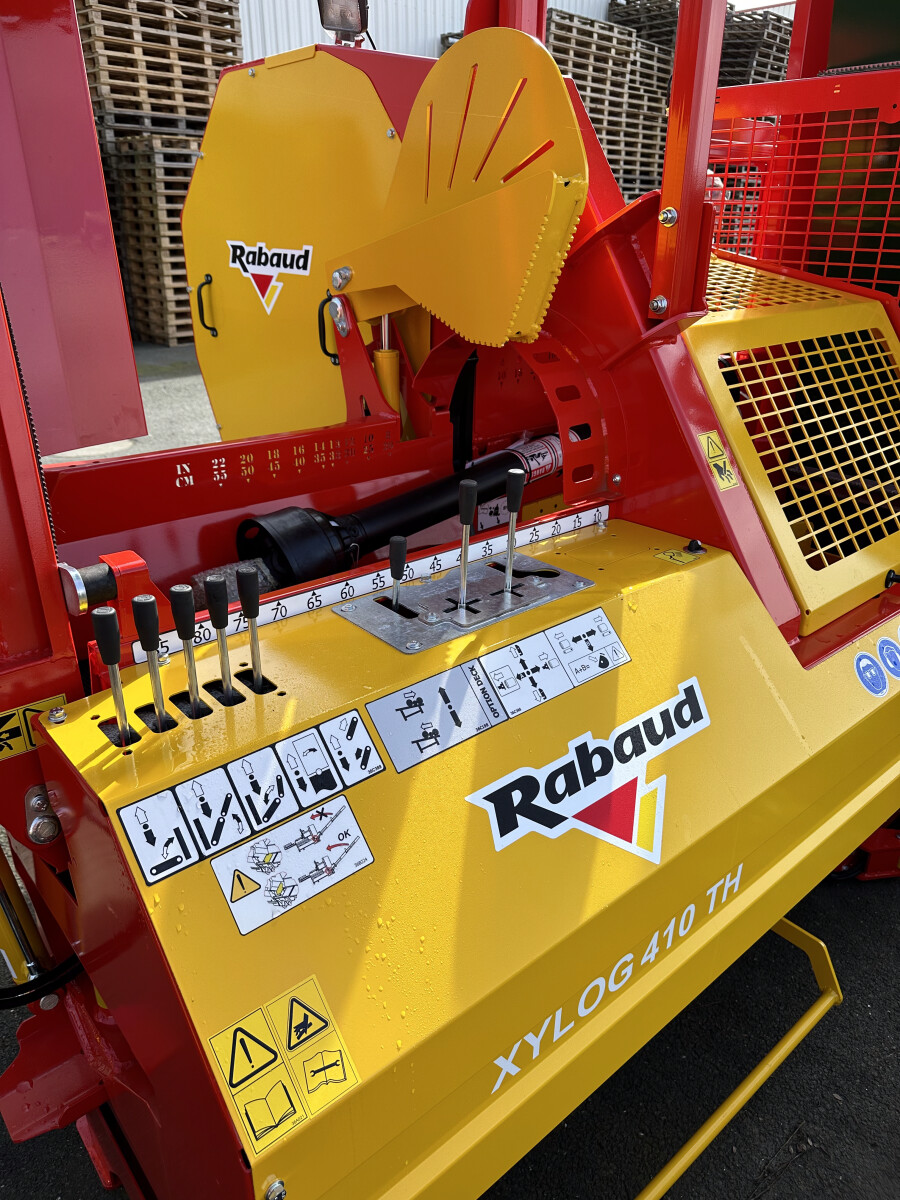

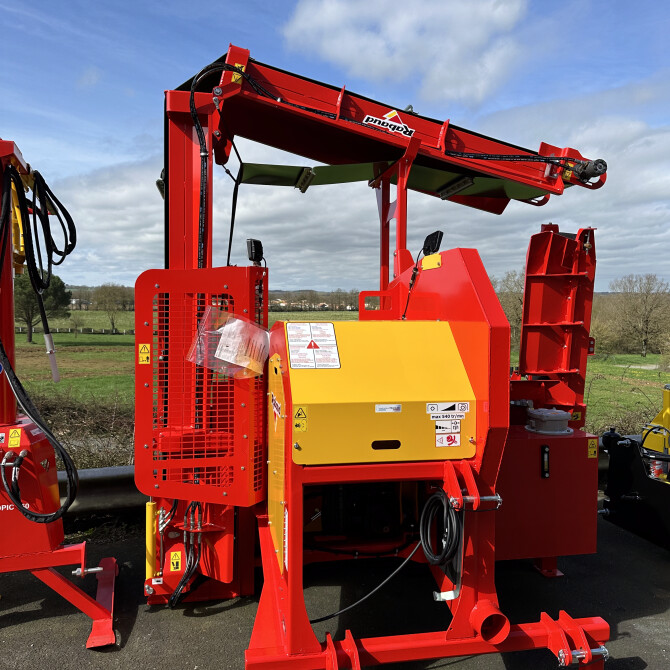

Rabaud Xylog 410

Maximum cutting diameter : 410 mm

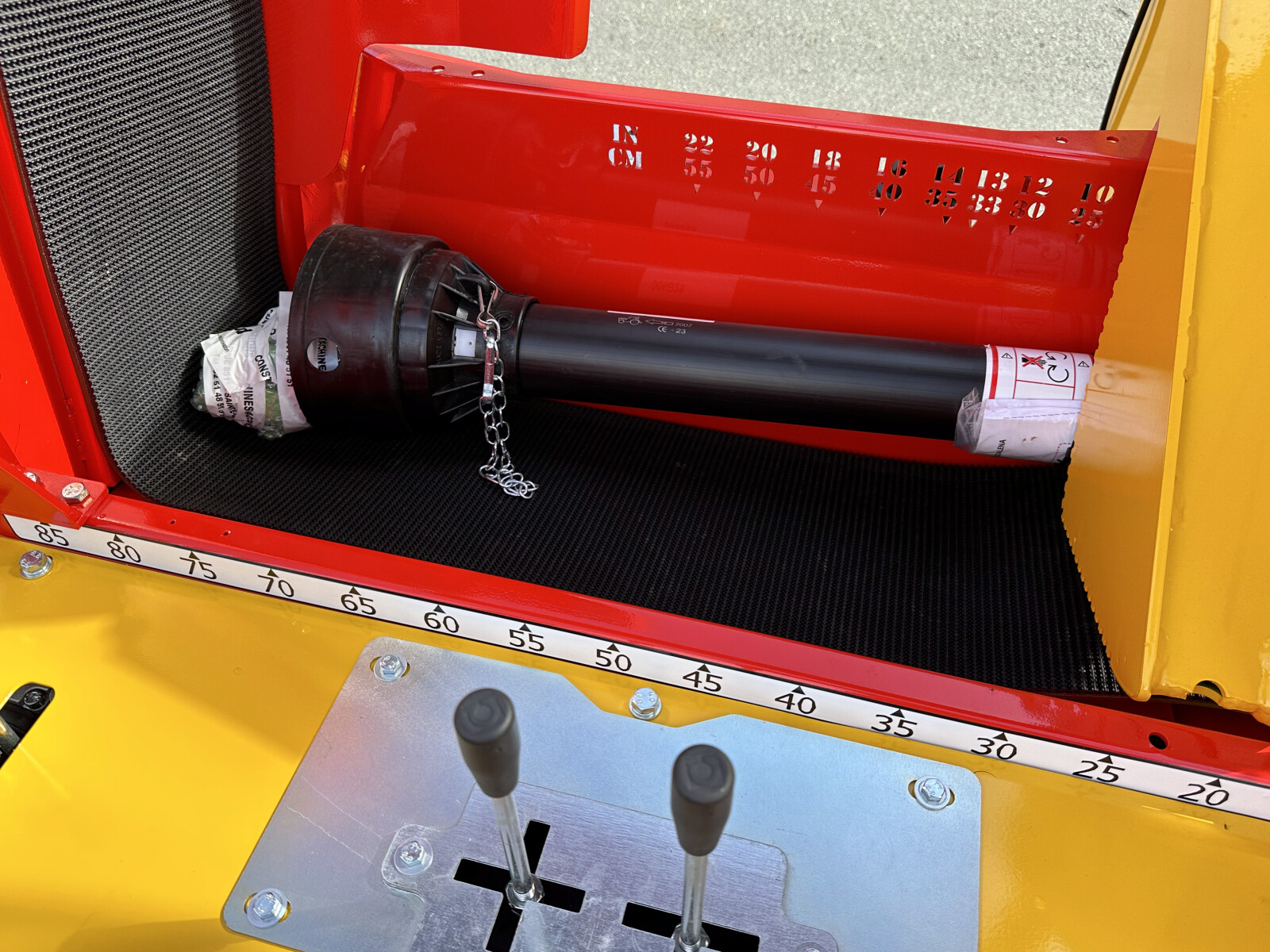

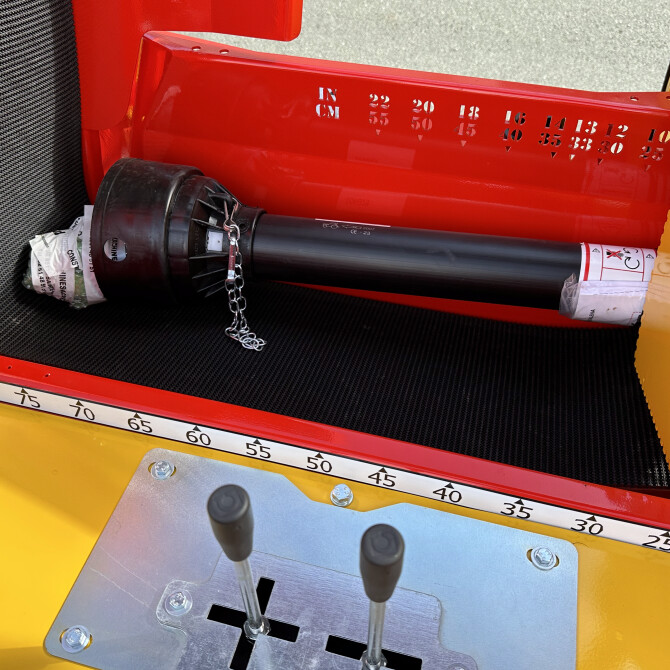

Quick and easy adjustment of the cutting length : 200, 250, 300, 330, 350, 400, 450 or 500 mm.

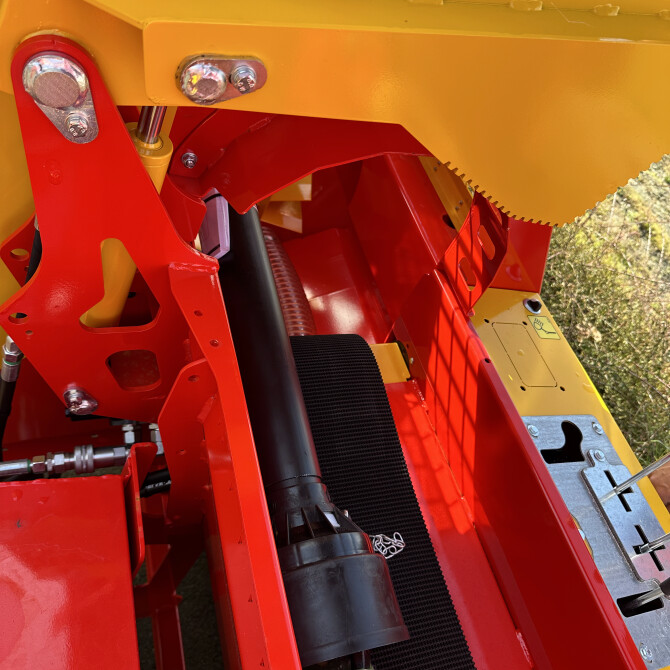

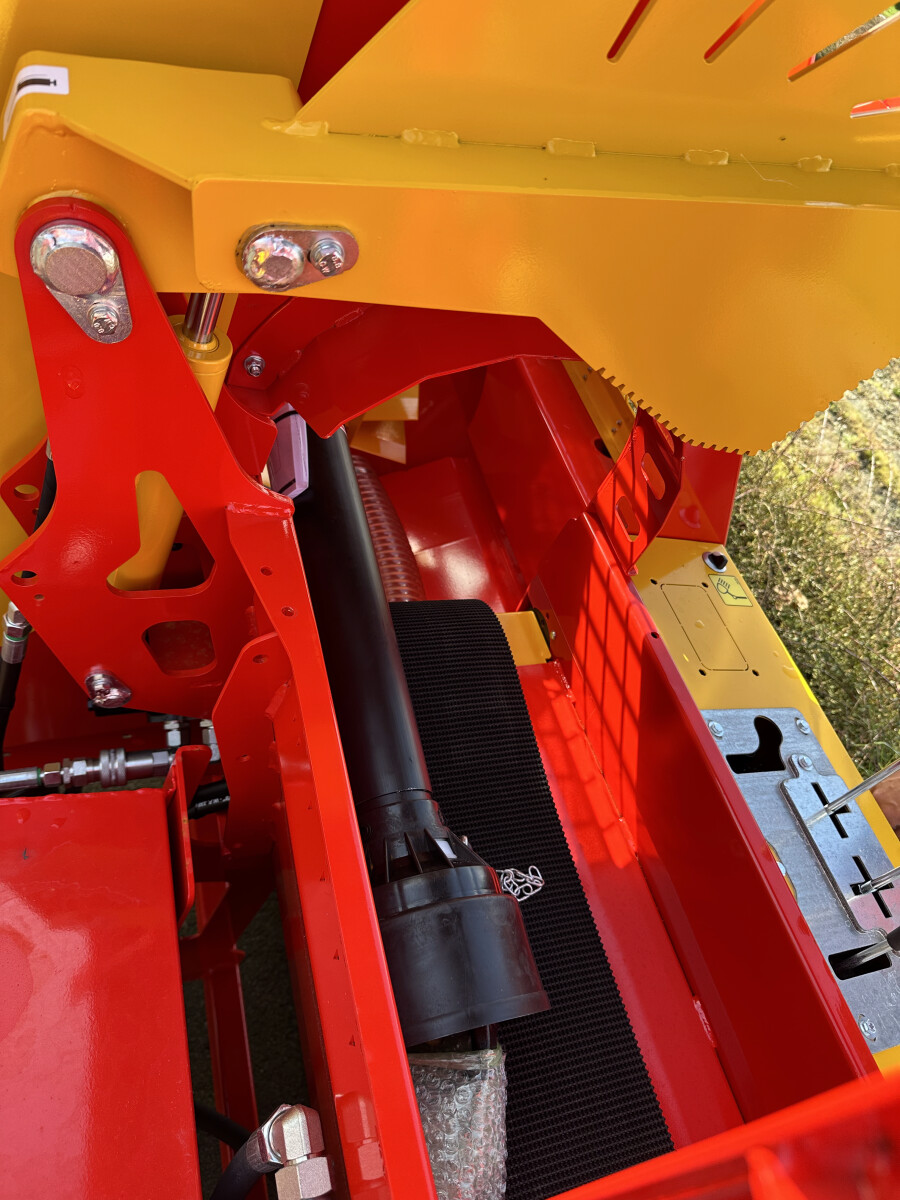

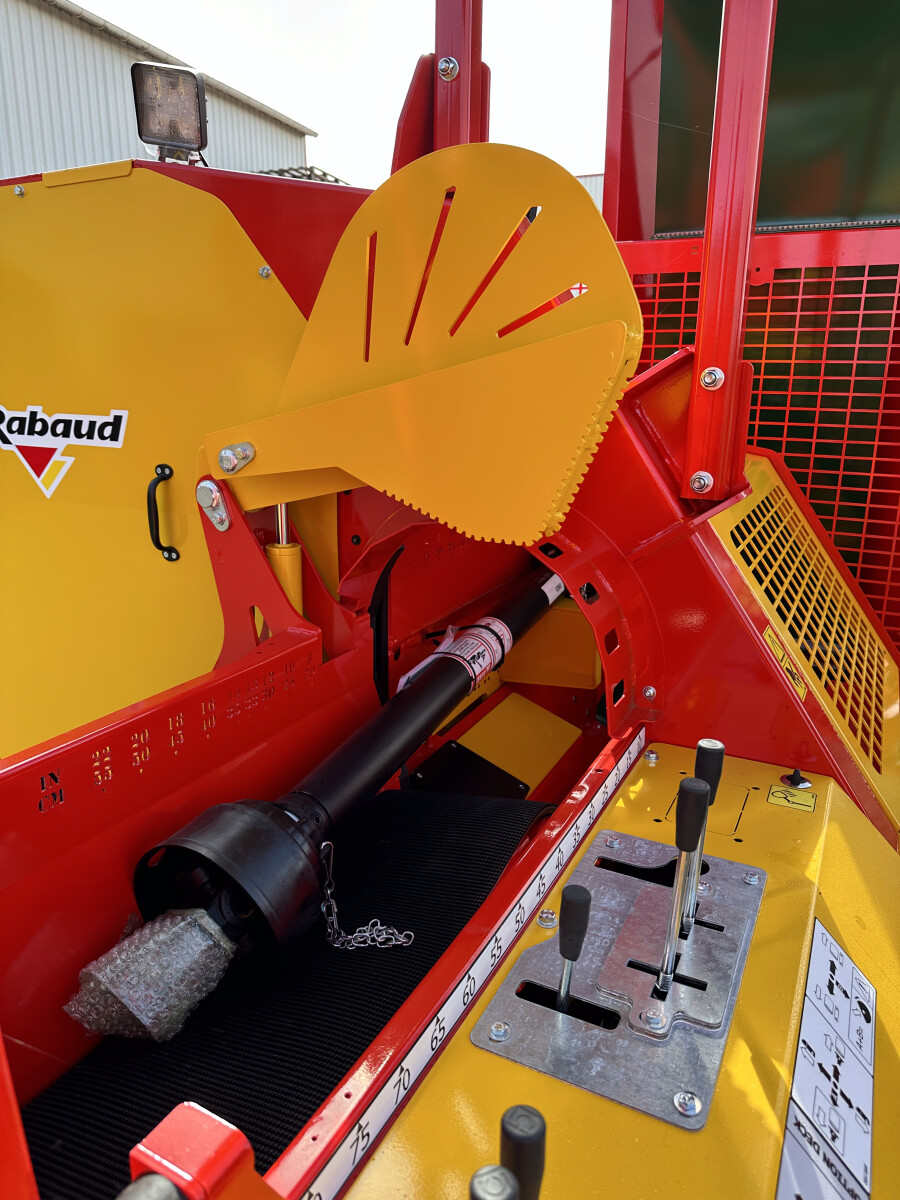

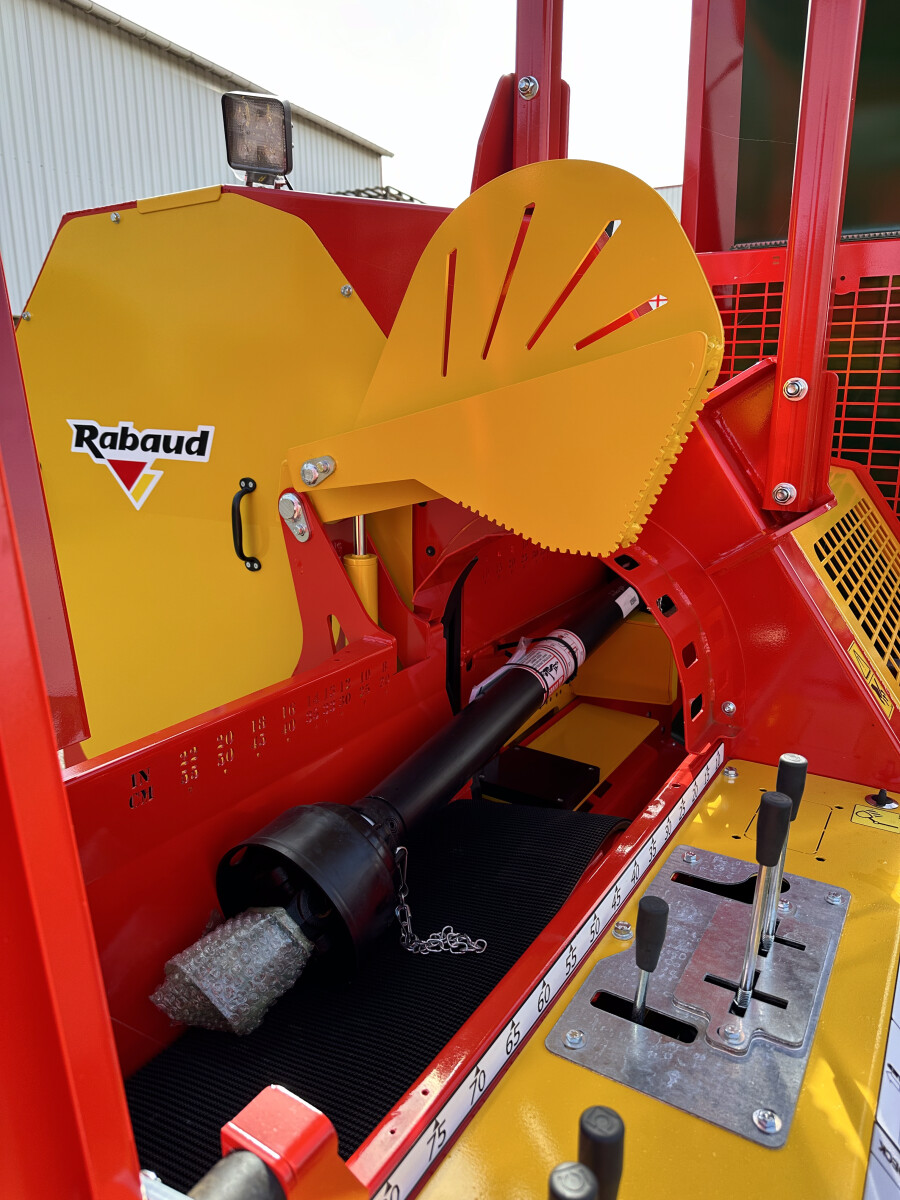

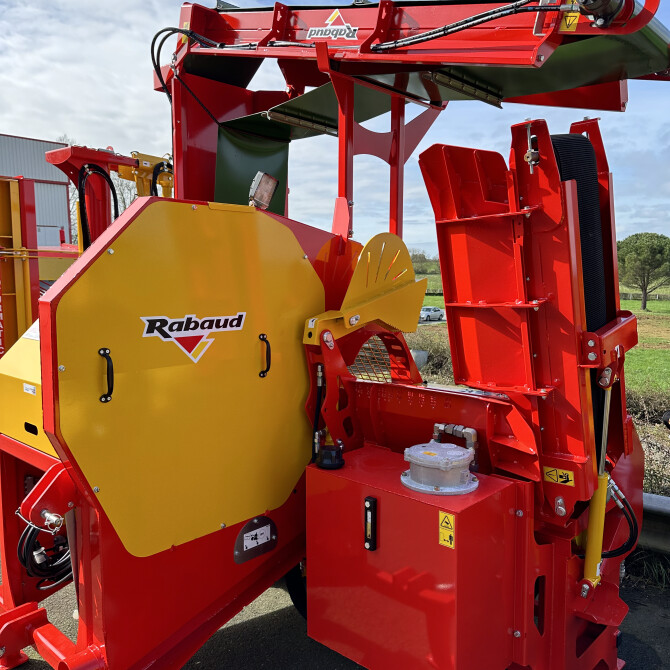

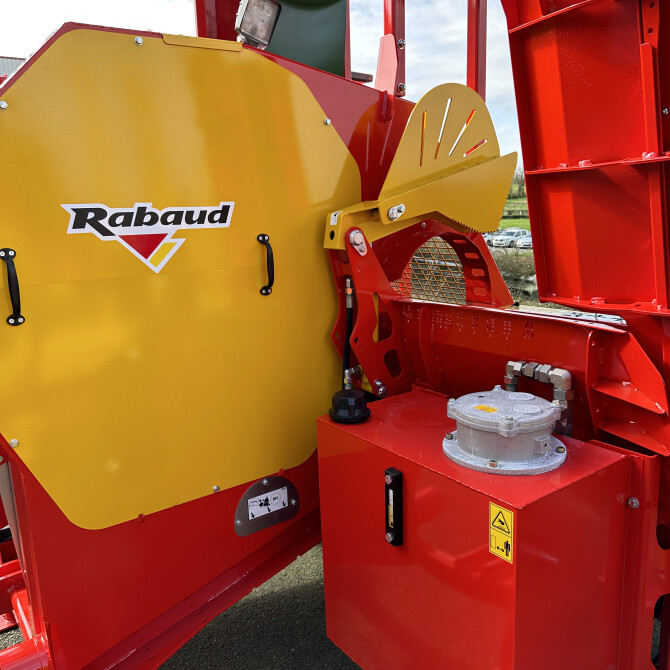

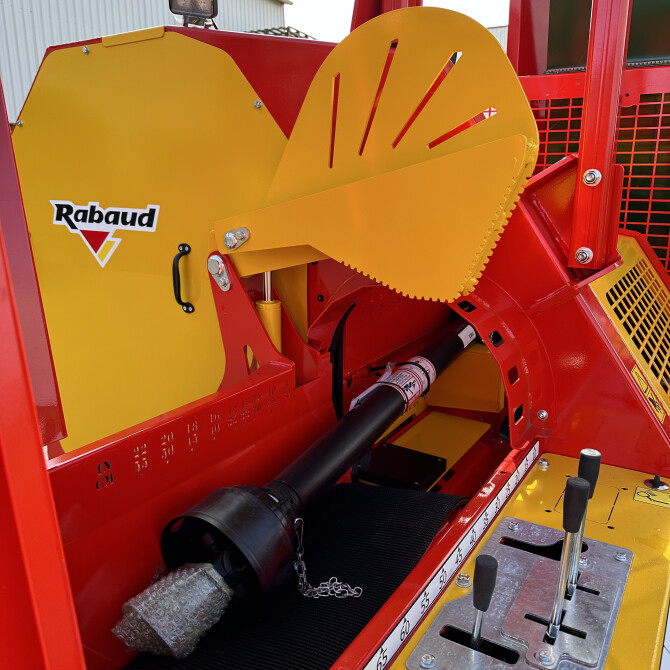

Cutting through circular saw with carbide teeth Ø 1000 mm driven by 5 belts.
4 possible splitting wedges : 0/2/3 splits, 2/4 splits, 2/6 splits, 2/8 splits.
Hydraulic adjustment of the splitting wedge.
Automatic hydraulic adjustment of the splitting power up to 16 Tons.

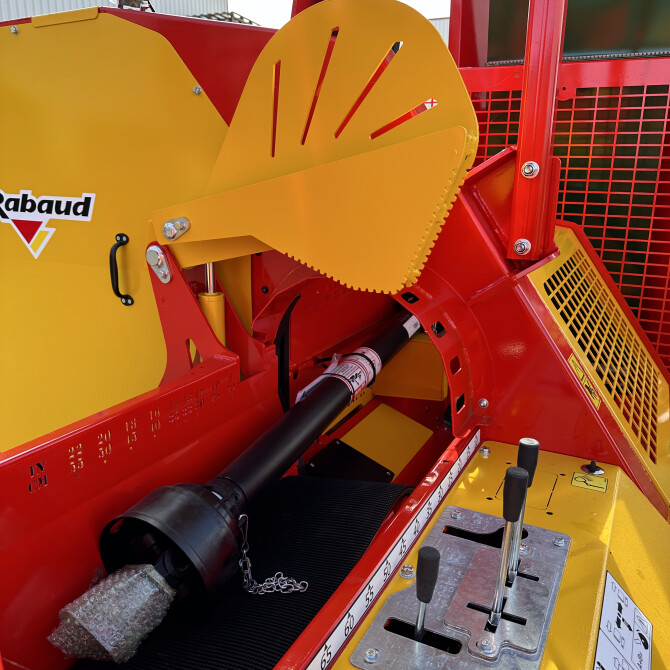

Hydraulic clamp to hold the log during the cutting.

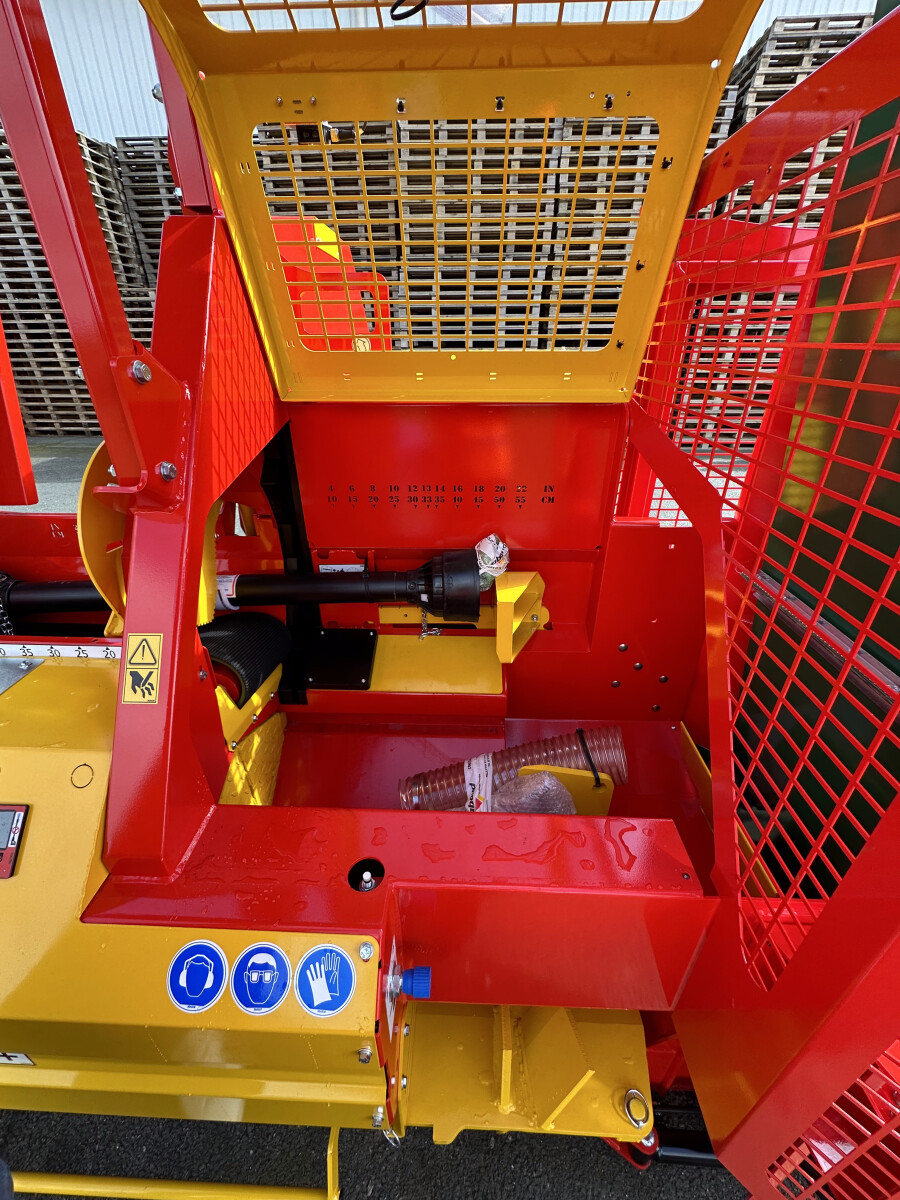

Deported splitting zone with "V" to properly center the logs.

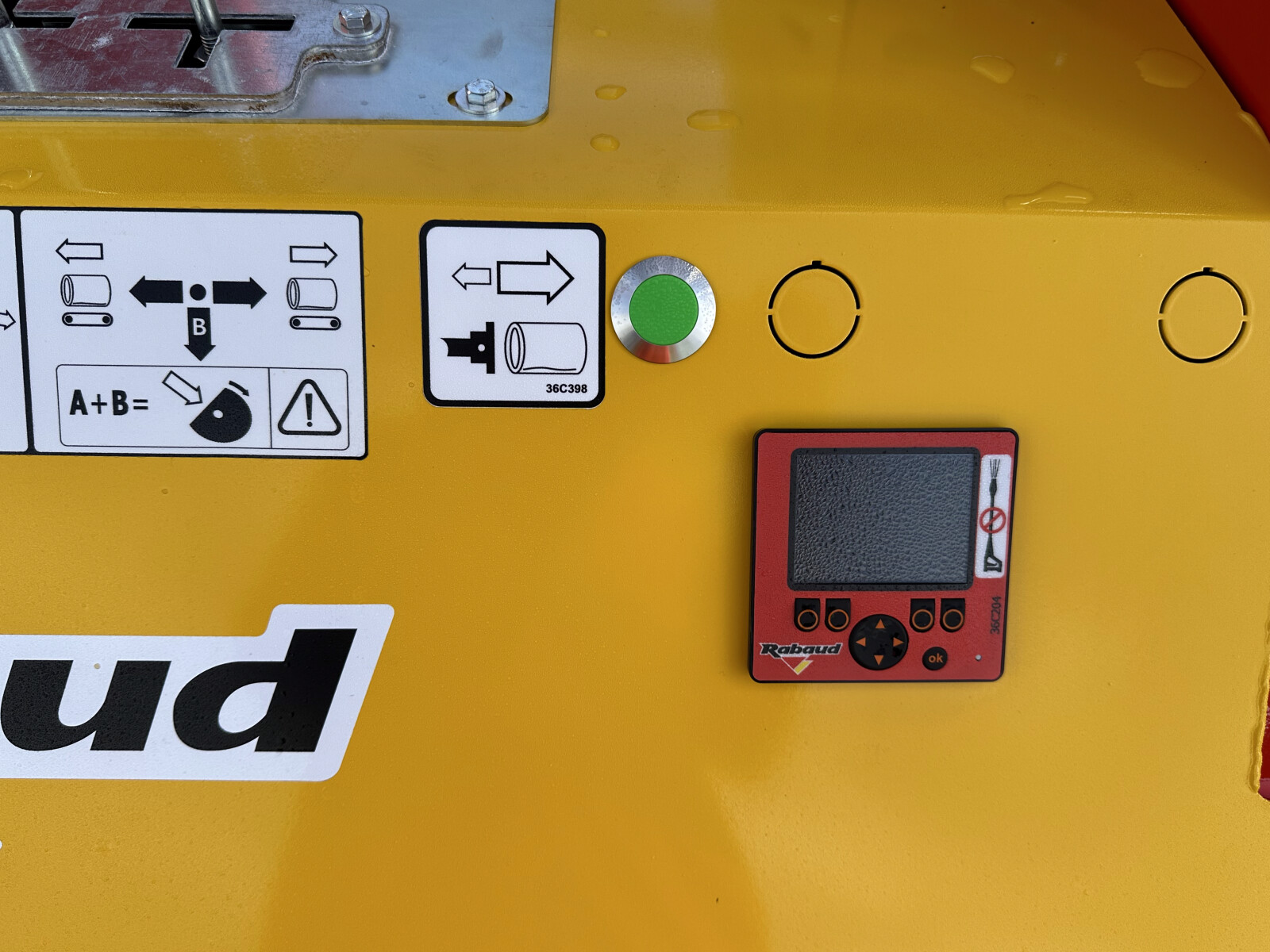

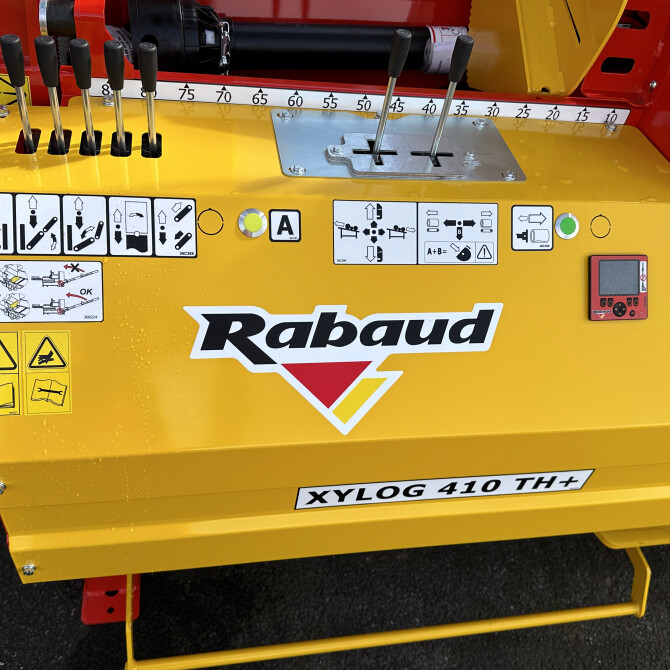

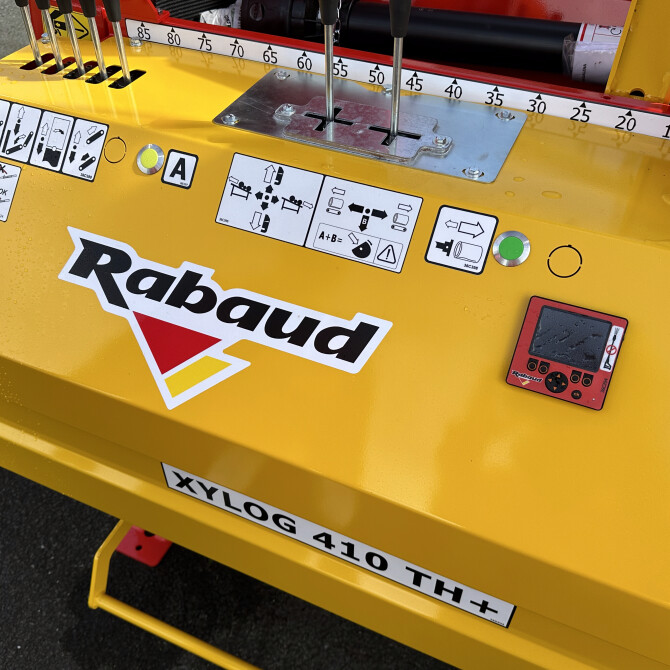

Simple operation without any electronics.

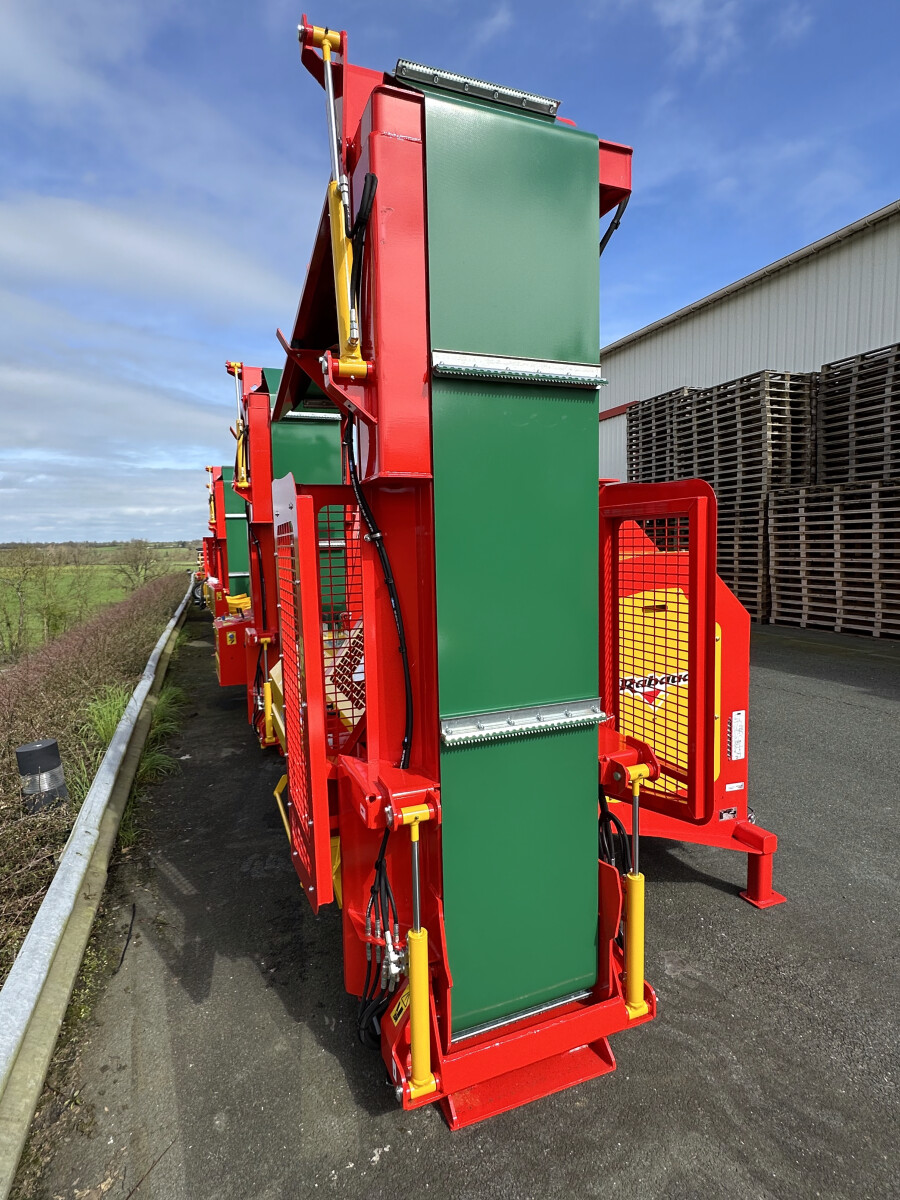

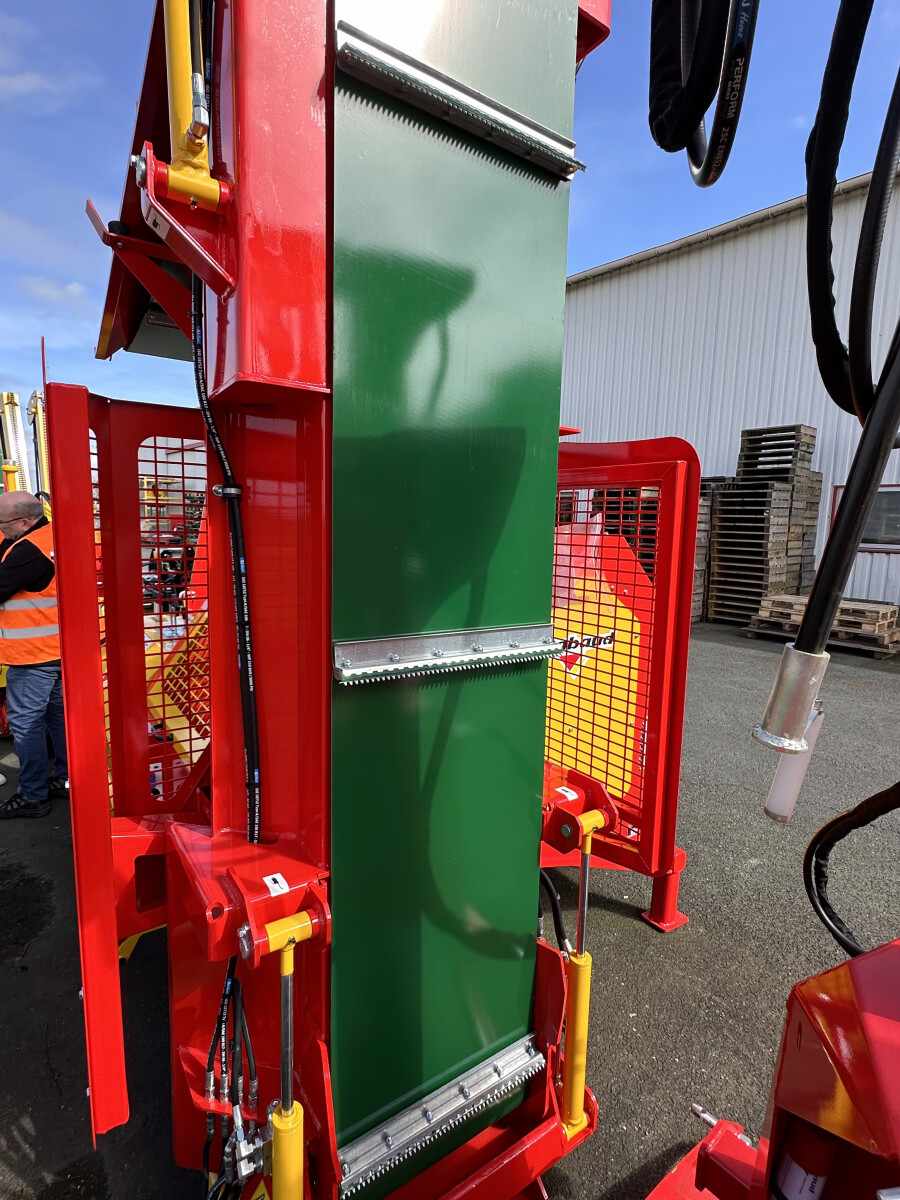

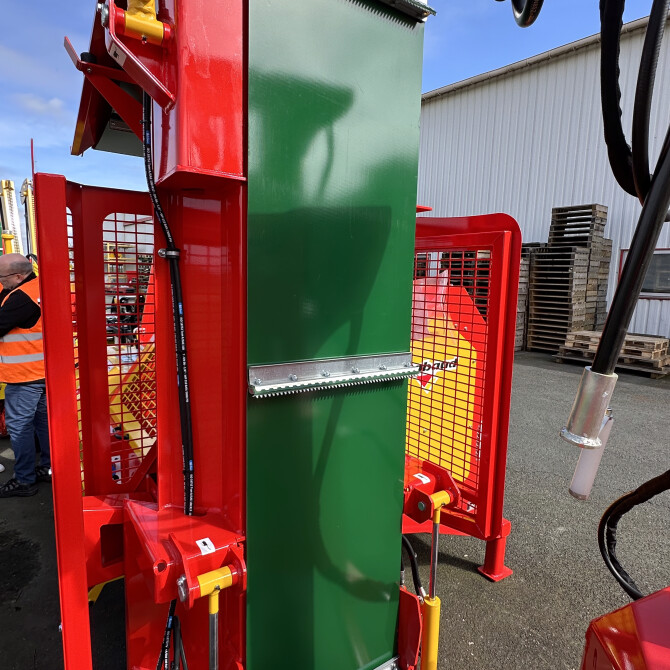

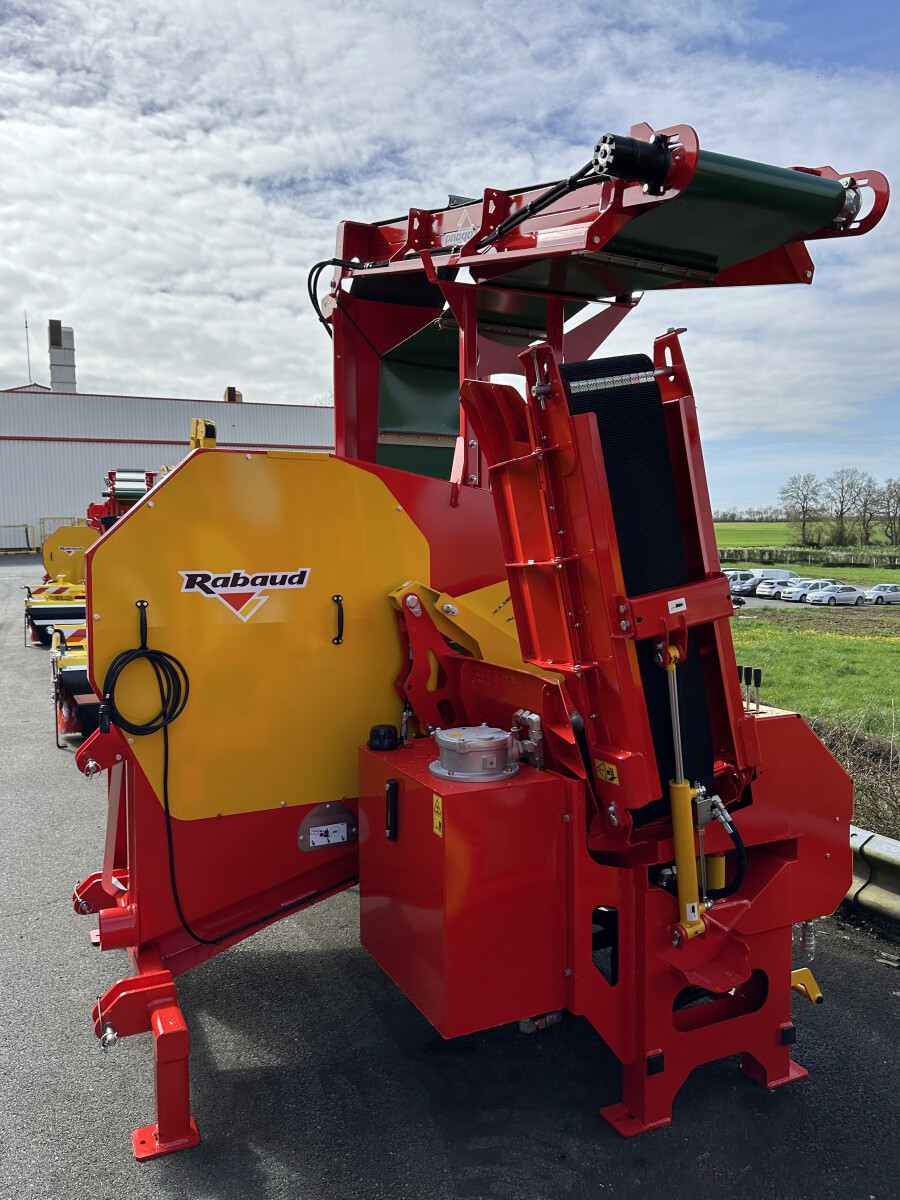

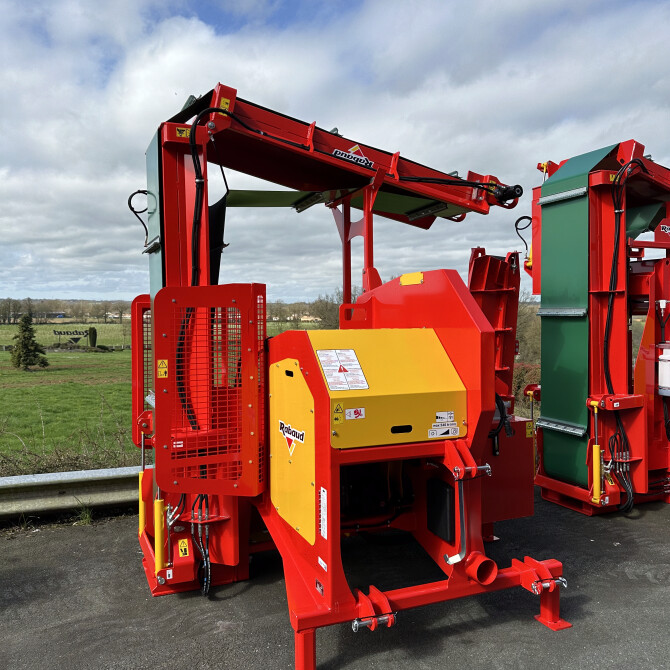

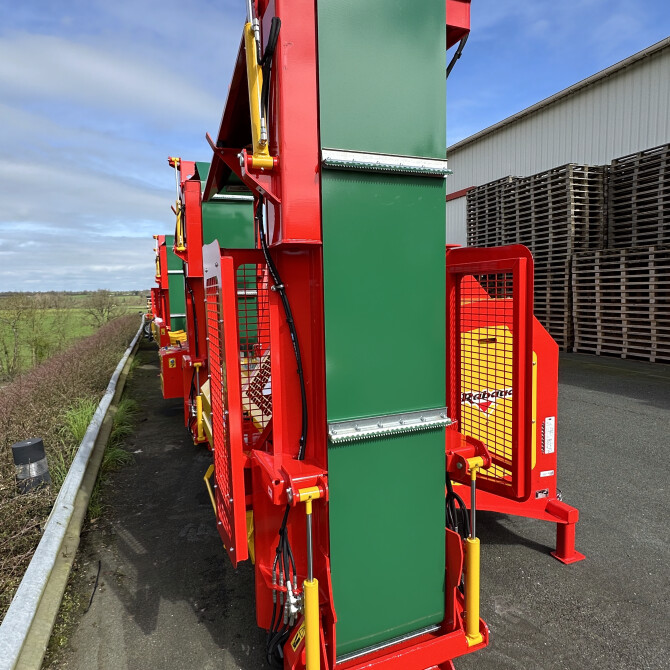

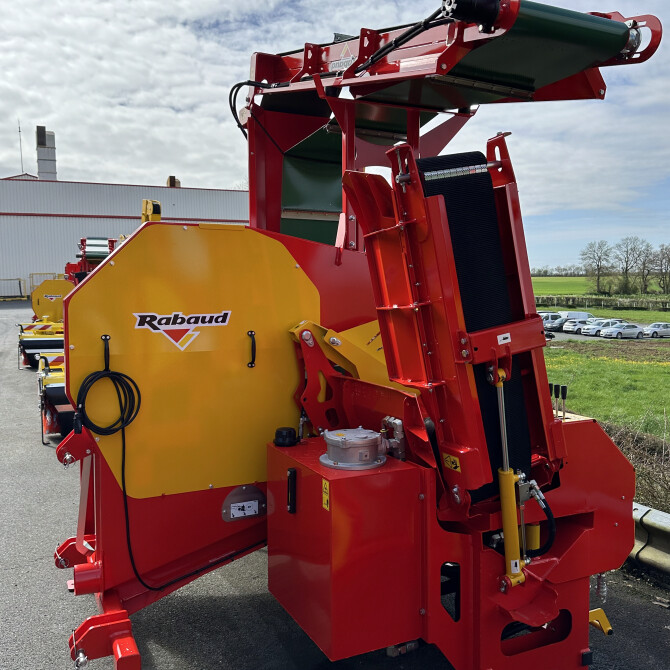

4 m or 4.50 m long discharge conveyor on TH version, with metalbars, made up of several strips for an easy and cost-saving maintenance.Strips are 350 mm wide on TM version and 500 mm wide on TH version.
Hydraulic tilting of the discharge conveyor +/- 10° on TH version (1.25 m wide).

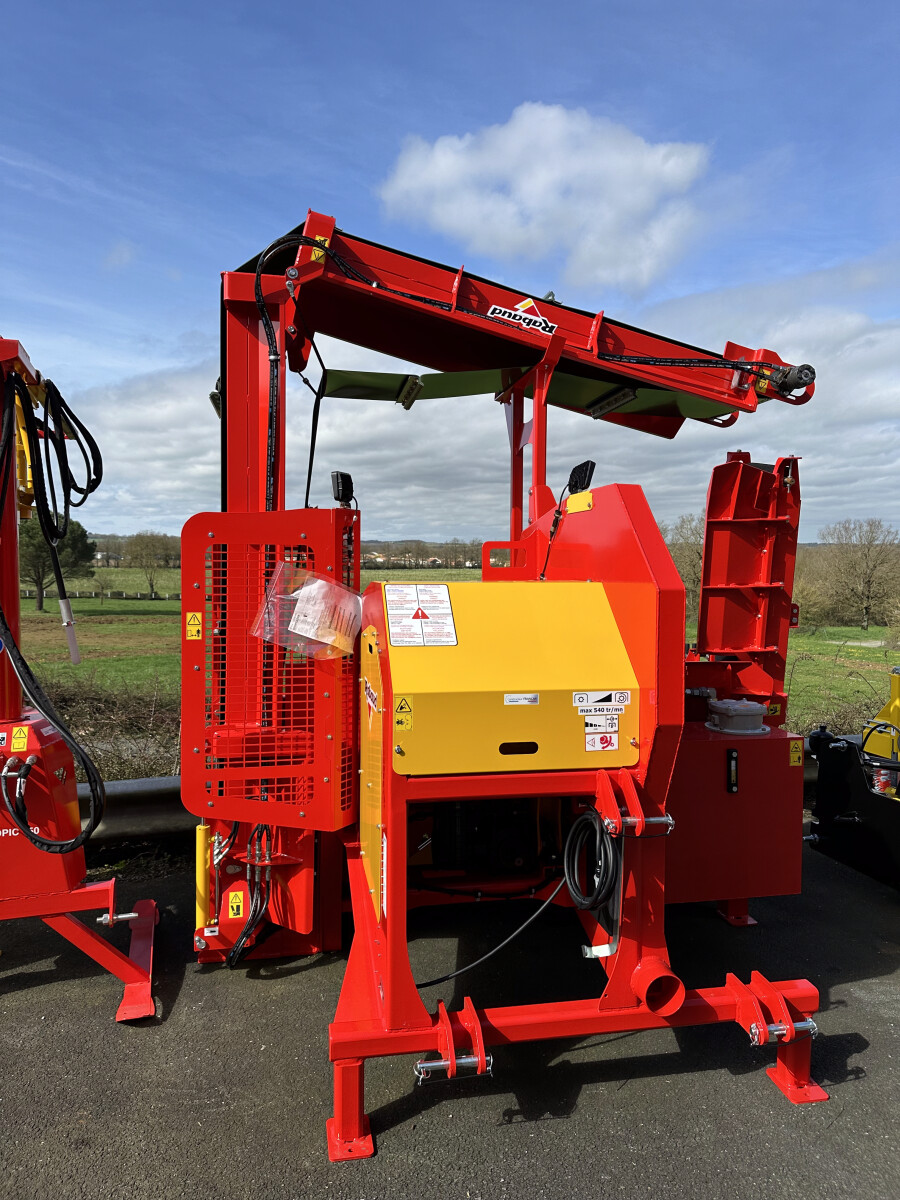

Foldable conveyor for transportation and adjustable in height , manual witha winch on TM version, hydraulic for the TH version.
Options : loading conveyor, electric motor, wedge support stand.
